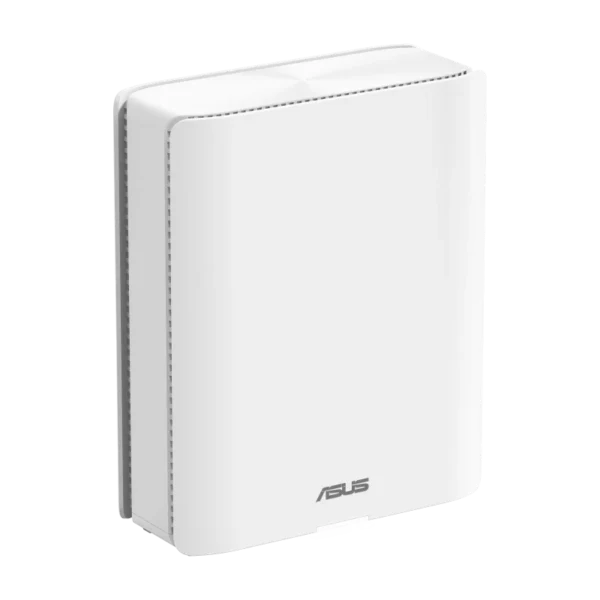

ASUS ZenWiFi BQ16
Specs
Tech Spec
| Model Name |
ASUS ZenWiFi BQ16 |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment |
BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps WiFi 7 (802.11be) (5GHz-1): up to 5764 Mbps WiFi 7 (802.11be) (5GHz-2): up to 5764 Mbps WiFi 7 (802.11be) (6GHz): up to 11529 Mbps |
| Antenna |
Internal antenna x 12 |
| Transmit / Receive |
2.4GHz 4x4 5GHz-1 4x4 5GHz-2 4x4 6GHz 4x4 |
| Memory |
RAM 2GB , Flash 256MB |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency |
2.4 GHz / 5 GHz / 6 GHz 2.4 GHz 5 GHz-1 5 GHz-2 6 GHz |
| Operating Mode |
Wireless Router Mode AiMesh Node Mode Access Point Mode |
| I/O Ports |
10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0 |
| Buttons |
Reset/ WPS/ Rocker Switch |
| LED Indicator |
Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19V with max. 3.42A current |
| Package Content |
ZenWiFi BQ16 RJ-45 cable Power adapter Warranty card Quick start guide |
| Product Weight (g) |
1341g |
| Product Dimensions |
214*174.2*72 mm |
| AiMesh |
AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control |
"Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Reward Parental Control - Safe Browsing Customized Internet Schedule • Maximum Parental Control Profile : 64 • Maximum Parental Control Content Filter Rule : 64 |
| Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network." Support Guest Network • Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8 Guest Network Connection Time Limit Open system, WPA/WPA2-Personal/WPA3-Personal |
| Security |
AiProtection VPN WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise , WPA2 Personal, WPA Personal, WPA Enterprise , WPS support WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN |
Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN |
Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP Dual WAN 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS |
| LAN |
DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Wake on LAN (WOL) |
| Wireless |
MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness Universal Beamforming Explicit Beamforming |
| USB Application |
4G / 5G Auto Mobile Tethering HDD Hibernation AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server |
| Administration |
Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
